Ceramics

Ceramics can be defined as heat-resistant, nonmetallic, inorganic solids that are (generally) made up of compounds formed from metallic and nonmetallic elements. Although different types of ceramics can have very different properties, in general ceramics are corrosion-resistant and hard, but brittle. Most ceramics are also good insulators and can withstand high temperatures. These properties have led to their use in virtually every aspect of modern life.

The two main categories of ceramics are traditional and advanced. Traditional ceramics include objects made of clay and cements that have been hardened by heating at high temperatures. Traditional ceramics are used in dishes, crockery, flowerpots, and roof and wall tiles. Advanced ceramics include carbides, such as silicon carbide, SiC; oxides, such as aluminum oxide, Al₂O₃; nitrides, such as silicon nitride, Si₃N₄; and many other materials, including the mixed oxide ceramics that can act as superconductors. Advanced ceramics require modern processing techniques, and the development of these techniques has led to advances in medicine and engineering.

Glass is sometimes considered a type of ceramic. However, glasses and ceramics differ in that ceramics have a crystalline structure while glasses contain impurities that prevent crystallization . The structure of glasses is amorphous, like that of liquids. Ceramics tend to have high, well-defined melting points, while glasses tend to soften over a range of temperatures before becoming liquids. In addition, most ceramics are opaque to visible light, and glasses tend to be translucent. Glass ceramics have a structure that consists of many tiny crystalline regions within a noncrystalline matrix. This structure gives them some properties of ceramics and some of glasses. In general, glass ceramics expand less when heated than most glasses, making them useful in windows, for wood stoves, or as radiant glass-ceramic cooktop surfaces.

Composition

Some ceramics are composed of only two elements. For example, alumina is aluminum oxide, Al₂O₃; zirconia is zirconium oxide, ZrO₂; and quartz is

silicon dioxide, SiO₂. Other ceramic materials, including many minerals, have complex and even variable compositions. For example, the ceramic mineral feldspar, one of the components of granite, has the formula KAlSi₃O₈.

The chemical bonds in ceramics can be covalent, ionic, or polar covalent, depending on the chemical composition of the ceramic. When the components of the ceramic are a metal and a nonmetal, the bonding is primarily ionic; examples are magnesium oxide (magnesia), MgO, and barium titanate, BaTiO₃. In ceramics composed of a metalloid and a nonmetal, bonding is primarily covalent; examples are boron nitride, BN, and silicon carbide, SiC. Most ceramics have a highly crystalline structure, in which a three-dimensional unit, called a unit cell, is repeated throughout the material. For example, magnesium oxide crystallizes in the rock salt structure. In this structure, Mg²⁺ ions alternate with O²⁻ ions along each perpendicular axis.

Manufacture of Traditional Ceramics

Traditional ceramics are made from natural materials such as clay that have been hardened by heating at high temperatures (driving out water and allowing strong chemical bonds to form between the flakes of clay). In fact, the word "ceramic" comes from the Greek keramos, whose original meaning was "burnt earth." When artists make ceramic works of art, they first mold clay, often mixed with other raw materials, into the desired shape. Special ovens called kilns are used to "fire" (heat) the shaped object until it hardens.

Clay consists of a large number of very tiny flat plates, stacked together but separated by thin layers of water. The water allows the plates to cling together, but also acts as a lubricant, allowing the plates to slide past one another. As a result, clay is easily molded into shapes. High temperatures drive out water and allow bonds to form between plates, holding them in place and promoting the formation of a hard solid. Binders such as bone ash are sometimes added to the clay to promote strong bond formation, which makes the ceramic resistant to breakage. The common clay used to make flowerpots and roof tiles is usually red-orange because of the presence of iron oxides. White ceramics are made from rarer (and thus more expensive) white clays, primarily kaolin.

The oldest known ceramics made by humans are figurines found in the former Czechoslovakia that are thought to date from around 27,000 b.c.e. It was determined that the figurines were made by mixing clay with bone, animal fat, earth, and bone ash (the ash that results when animal bones are heated to a high temperature), molding the mixture into a desired shape, and heating it in a domed pit. The manufacture of functional objects such as pots, dishes, and storage vessels, was developed in ancient Greece and Egypt during the period 9000 to 6000 b.c.e.

An important advance was the development of white porcelain. Porcelain is a hard, tough ceramic that is less brittle than the ceramics that preceded it. Its strength allows it to be fashioned into beautiful vessels with walls so thin they can even be translucent. It is made from kaolin mixed with china stone, and the mixture is heated to a very high temperature (1,300°C, or 2,372°F). Porcelain was developed in China around c.e. 600 during the T'ang dynasty and was perfected during the Ming dynasty, famous for its blue and white porcelain. The porcelain process was introduced to the Arab world in the ninth century; later Arabs brought porcelain to Spain, from where the process spread throughout Europe.

Bone china has a composition similar to that of porcelain, but at least 50 percent of the material is finely powdered bone ash. Like porcelain, bone china is strong and can be formed into dishes with very thin, translucent walls. Stoneware is a dense, hard, gray or tan ceramic that is less expensive than bone china and porcelain, but it is not as strong. As a result, stoneware dishes are usually thicker and heavier than bone china or porcelain dishes.

Manufacture of Advanced Ceramics

The preparation of an advanced ceramic material usually begins with a finely divided powder that is mixed with an organic binder to help the powder consolidate, so that it can be molded into the desired shape. Before it is fired, the ceramic body is called "green." The green body is first heated at a low temperature in order to decompose or oxidize the binder. It is then heated to a high temperature until it is "sintered," or hardened, into a dense, strong ceramic. At this time, individual particles of the original powder fuse together as chemical bonds form between them. During sintering the ceramic may shrink by as much as 10 to 40 percent. Because shrinkage is not uniform, additional machining of the ceramic may be required in order to obtain a precise shape.

Sol-gel technology allows better mixing of the ceramic components at the molecular level, and hence yields more homogeneous ceramics, because the ions are mixed while in solution. In the sol-gel process, a solution of an organometallic compound is hydrolyzed to produce a "sol," a colloidal suspension of a solid in a liquid. Typically the solution is a metal alkoxide such as tetramethoxysilane in an alcohol solvent. The sol forms when the individual formula units polymerize (link together to form chains and networks). The sol can then be spread into a thin film, precipitated into tiny uniform spheres called microspheres, or further processed to form a gel inside a mold that will yield a final ceramic object in the desired shape. The many crosslinks between the formula units result in a ceramic that is less brittle than typical ceramics.

Although the sol-gel process is very expensive, it has many advantages, including low temperature requirements; the ceramist's ability to control porosity and to form films, spheres, and other structures that are difficult to form in molds; and the attainment of specialized ceramic compositions and high product purity.

Porous ceramics are made by the sol-gel process. These ceramics have spongelike structures, with many porelike lacunae, or openings, that can make up from 25 to 70 percent of the volume. The pore size can be large, or as small as 50 nanometers (2 × 10⁻⁶ inches) in diameter. Because of the large number of pores, porous ceramics have enormous surface areas (up to 500 square meters, or 5,382 square feet, per gram of ceramic), and so can make excellent catalysts. For example, zirconium oxide is a ceramic oxygen sensor that monitors the air-to-fuel ratio in the exhaust systems of automobiles.

Aerogels are solid foams prepared by removing the liquid from the gel during a sol-gel process at high temperatures and low pressures. Because aerogels are good insulators, have very low densities, and do not melt at high temperatures, they are attractive for use in spacecraft.

Properties and Uses

For centuries ceramics were used by those who had little knowledge of their structure. Today, understanding of the structure and properties of ceramics is making it possible to design and engineer new kinds of ceramics.

Most ceramics are hard, chemically inert , refractory (can withstand very high heat without deformation), and poor conductors of heat and electricity. Ceramics also have low densities. These properties make ceramics attractive for many applications. Ceramics are used as refractories in furnaces and as durable building materials (in the form of bricks, tiles, cinder blocks, and other hard, strong solids). They are also used as common electrical and thermal insulators in the manufacture of spark plugs, telephone poles, electronic devices, and the nose cones of spacecraft. However, ceramics also tend to be brittle. A major difficulty with the use of ceramics is their tendency to acquire tiny cracks that slowly become larger until the material falls apart. To prevent ceramic materials from cracking, they are often applied as coatings on inexpensive materials that are resistant to cracks. For example, engine parts are sometimes coated with ceramics to reduce heat transfer.

Composite materials that contain ceramic fibers embedded in polymer matrices possess many of the properties of ceramics; these materials have low densities and are resistant to corrosion, yet are tough and flexible rather than brittle. They are used in tennis rackets, bicycles, and automobiles. Ceramic composites may also be made from two distinct ceramic materials that exist as two separate ceramic phases in the composite material. Cracks generated in one phase will not be transferred to the other. As a result, the resistance of the composite material to cracking is considerable. Composite ceramics made from diborides and/or carbides of zirconium and hafnium mixed with silicon carbide are used to create the nose cones of spacecraft. Break-resistant cookware (with outstanding thermal shock resistance) is also made from ceramic composites.

Although most ceramics are thermal and electrical insulators, some, such as cubic boron nitride, are good conductors of heat, and others, such as rhenium oxide, conduct electricity as well as metals. Indium tin oxide is a transparent ceramic that conducts electricity and is used to make liquid crystal calculator displays. Some ceramics are semiconductors, with conductivities that become enhanced as the temperature increases. For example, silicon carbide, SiC, is used as a semiconductor material in high temperature applications.

High temperature superconductors are ceramic materials consisting of complex ionic oxides that become superconducting when cooled by liquid nitrogen. That is, they lose all resistance to electrical current. One example is the material YBa₂Cu₃O_7−x , which crystallizes to form "sheets" of copper and oxygen atoms that can carry electrical current in the planes of the sheets.

Some ceramics, such as barium ferrite or nickel zinc ferrites, are magnetic materials that provide stronger magnetic fields, weigh less, and cost less than metal magnets. They are made by heating powdered ferrite in a magnetic field under high pressure until it hardens. Ceramic magnets are brittle, but are often used in computers and microwave devices.

The properties of piezoelectric ceramics are modified when voltage is applied to them, making them useful as sensors and buzzers. For example, lead zirconium titanate is a piezoelectric ceramic used to provide "muscle action" in robot limbs in response to electrical signals.

Some ceramics are transparent to light of specific frequencies. These optical ceramics are used as windows for infrared and ultraviolet sensors and in radar installations. However, optical ceramics are not as widely used as glass materials in applications in which visible light must be transmitted. An electro-optic ceramic such as lead lanthanum zirconate titanate is a material whose ability to transmit light is altered by an applied voltage. These electro-optic materials are used in color filters and protective goggles, as well as in memory-storage devices.

Still other ceramics are important in medicine. For example, they are used to fabricate artificial bones and to crown damaged teeth. The fact that many ceramics can be easily sterilized and are chemically inert makes ceramic microspheres made of these materials useful as biosensors. Drugs and other chemicals can be carried within microsphere pores to desired sites in the body.

see also Glass; Minerals; Semiconductors; Superconductors.

Loretta L. Jones

Bibliography

Ball, Philip (1997). Made to Measure: New Materials for the Twenty-First Century. Princeton, NJ: Princeton University Press.

Barsoum, Michael W. (1996). Fundamentals of Ceramics. New York: McGraw-Hill.

Brinker, C. Jeffrey, and Scherer, George W. (1990). Sol-Gel Science: The Physics and Chemistry of Sol-Gel Processing. Boston: Academic Press.

Calvert, Paul (2000). "Advanced Materials." In The New Chemistry, ed. Nina Hall. New York: Cambridge University Press.

Kingery, W. D.; Bowen, H. K.; and Uhlmann, D. R. (1976). Introduction to Ceramics, 2nd edition. New York: Wiley.

Richerson, David W. (1992). Modern Ceramic Engineering: Properties, Processes, and Use in Design, 2nd edition, revised and expanded. New York: Marcel Dekker. Richerson, David W. (2000). The Magic of Ceramics. Westerville, OH: American Ceramic Society.

Shackleford, James F., ed. (1998). Bioceramics: Applications of Glass and Ceramic Materials in Medicine. Zurich: Trans-Tech Publications.

Wachtman, John B., Jr., ed. (1999). Ceramic Innovations in the 20th Century. Westerville, OH: American Ceramic Society.

Internet Resources

"About Ceramics." American Ceramic Society. Available from <http://www.ceramics.org>.

Ceramic

Ceramic is a hard, brittle substance that resists heat and corrosion and is made by heating a nonmetallic mineral or clay at an extremely high temperature. The word ceramic comes from the Greek word for burnt material, keramos. Ceramics are used to produce pottery, porcelain, china, and ceramic tile. They may also be found in cement, glass, plumbing and construction materials, and spacecraft components.

The basic ingredient in all forms of ceramics are silicates, the main rock-forming minerals. Most silicates are composed of at least one type of metal combined with silicon and oxygen. Feldspar and silica are example of silicates. When silicates are combined with a liquid such as water, they form a mixture that can be kneaded and shaped into any form. After shaping, the object is dried and fired in a high-temperature oven called a kiln. A glaze (a glasslike substance that makes a surface glossy and watertight) may be added between drying and firing. From ancient days to the present, this process has remained virtually the same, except for the addition of mechanical aids.

Pottery

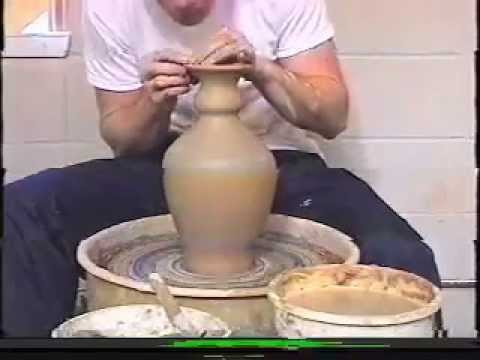

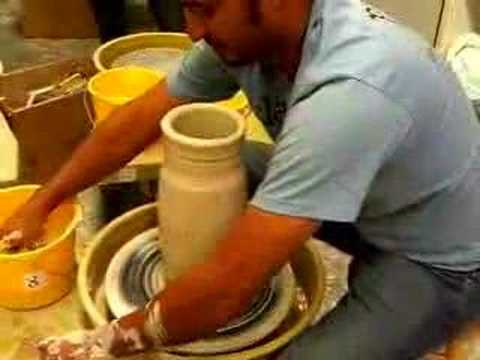

The oldest examples of pottery, found in Moravia (a region of the Czech Republic) and dating back to 25,000 b.c., are animal shapes made of fired clay. Potter's wheels and kilns first appeared in Mesopotamia (an ancient region in southwest Asia) around 3000 b.c. Some of the most fascinating pottery in history was made by the ancient Greeks, whose vases were skillfully decorated in the methods of black figure (black paint applied to red clay) or red figure (black paint covering all but the design, which stood out in red clay). Early Islamic potters of the Middle East produced colorful, imaginatively glazed tiles and other items. Their elaborate pictorial designs have provided archaeologists with many clues to their daily lives.

Perhaps the most renowned potters of all time are the Chinese, who developed the finest form of pottery—porcelain. Made of kaolin (pronounced KA-uh-lin; a white clay free of impurities) and petuntse (a feldspar mineral that forms a glassy cement), porcelain is fired at extremely high temperatures. The result is a high-quality material that is uniformly translucent, glasslike, and white. Porcelain was first made in China during the T'ang Dynasty (618–906).

Modern ceramics

In the twentieth century, scientists and engineers acquired a much better understanding of ceramics and their properties. During World War II (1939–45), a high demand for military materials hastened the evolution of the science of ceramics. These materials are now found in a wide variety of products, including abrasives, bathroom fixtures, and electrical insulation.

During the 1960s and 1970s, the growing fields of atomic energy, electronics, communication, and space travel increased demand for more sophisticated ceramic products. Because ceramics can withstand extreme temperatures, they have been used in gas turbines and jet engines. The undersides of the space shuttles are lined by some 20,000 individually contoured silica fiber tiles that are bonded to a felt pad. The felt pad in turn is bonded to the body of a shuttle. These ceramic tiles can withstand a maximum surface temperature of 1,200 to 1,300°F (650 to 705°C).

In 1990, a team of Japanese scientists working for their government developed a stretchable material from silicon-based compounds. When made into strips and heated, this special ceramic material can be stretched to two and-a-half times its original length without losing its hardness and durability.

ceramics. Historically ceramics production was widely dispersed, its main branches being brick and tile, pottery and porcelain manufacture. Brick-making was highly localized, wherever suitable clay deposits coincided with a lack of cheap building stone, or where coal, the main fuel used in firing the kilns, was itself cheap. The most primitive form of production was in clamps or piles, covered with earth or turves, and fired with small coal. By the late 18th cent. this was abandoned in favour of fixed kilns, which gradually became larger and more efficient. Continuous methods of firing were introduced during the second half of the 19th cent. Another important product, which played its part in the modernization of agriculture during the 18th and 19th cents., was the field drain. Decorative tile manufacture reached its peak during the Victorian and Edwardian eras.

Also widely manufactured, pottery was an important item of everyday use and of both short- and long-distance trade from prehistoric times, and hence can be an invaluable aid in the dating of archaeological and historic sites. Suitable clay is found in many parts of Britain, but the differences in quality arise from the variability of the raw material. According to material, methods of production, and finish, pottery can be classified in three categories—earthenware, stoneware, and porcelain. The high-domed furnace was introduced from the continent before 1600, but this was replaced in the 18th cent. by a bottle-shaped kiln, of the kind once common in the Potteries of Staffordshire, and still to be seen at the Gladstone Pottery Museum in Stoke-on-Trent or at the Ironbridge Gorge Museum, Telford.

Stoneware was probably the most common variety of pottery still in use in the 18th cent. It was made from a mixture of clay and 20 per cent ground flint, with a salt glaze, and was a typical product of the Staffordshire industry. Porcelain was imitated as a substitute for expensive East India Company imports from China, first pioneered by the Dutch in Delft. After 1740 imitation of Delft-ware was widespread, notably at Lambeth, Bristol, Liverpool, and Glasgow. Around the same time, fine porcelain began to be produced, among other locations, in Chelsea, Derby, and Worcester. Following Meissen and Sèvres products, British potters began to use china clay or kaolin, when in 1768 William Cookworthy, a Plymouth chemist, proved the potential of the kaolin reserves of Cornwall. Due to the availability of local skilled labour and cheap coal, this new industry concentrated on Staffordshire, where one of the best potters was Josiah Wedgwood, whose Etruria works and products became world famous.

During the late 18th and early 19th cents. ceramics became one of the leading mass-production industries, though alongside cheap earthenware, high-quality porcelain was produced by potters like Spode, Minton, and Coalport. These and other famous names in the history of ceramics survive in the modern industry, which has become geographically more concentrated, but still manufactures a diverse range of products. The Arts and Crafts movement of the later 19th and early 20th cents. saw a revival of traditional pottery techniques, emphasizing artistic skill and design as a counter to mass production.

Ian Donnachie

ceramics. Archaeology clearly documents the use of pottery in Ireland from the Neolithic through to the medieval period. The arrival of oriental porcelain in Ireland during the early 18th century prompted the Irish to attempt to produce fine wares for the table. Delftware factories, making tin‐glazed earthenware, were established' in Belfast in 1698 and in Dublin about 1735. The Dublin pottery went through various hands before being taken over by Henry Delamain in 1752. It produced wares on a large scale until its closure in c.1767. Other delftware potteries were in existence for short periods in Rostrevor, Youghal, and possibly Limerick. In Belfast the Downshire Pottery (c.1790–1807) had been set up to make a refined earthenware for the table called creamware.

Although 18th‐century attempts to create porcelain in Ireland were unsuccessful, retailers were able to satisfy demand through imports. Towards the end of the 18th century, the number of fine ceramic retailers grew. In Dublin Josiah Wedgwood and James Donovan had shops, furnished with kilns, which allowed them to decorate and personalize imported English porcelain.

Throughout the 19th century, many local potteries were established to produce domestic earthenware. These included nine around the Coalisland area, and others at Castle Espie, Youghal, and Larne. The pottery at Belleek, founded by David McBirney in 1863, also produced quantities of earthenware for the local domestic market, but is better known as the first pottery in Ireland to produce porcelain. Belleek's distinctive style of exceptionally fine parian porcelain has now become world famous and is still in production today.

The rise of art pottery in England and Europe only briefly touched Ireland. Frederick Vodrey (1845–97) produced art pottery in Dublin from around 1873 until 1897. His work was characterized by classical shapes decorated with either monochrome or streaked glazes. Around the turn of the century members of the Irish Decorative Arts Association decorated blank pottery with Celtic designs but it was not until 1929, when Kathleen Cox (1904–74) set up a studio in Dublin, that real art or studio pottery was produced in Ireland. During the 20th century new potteries were established to produce domestic and tourist wares. These included Carrigaline (1928–79), Arklow (1934– ), and Wade (1946–90) in Armagh. In 1965 the Irish government established the Kilkenny Design Workshops and in 1970 the World Crafts Council Conference was held in Ireland. The following year saw the formation of the Crafts Council of Ireland. These bodies have helped to establish studio potteries and continue to support the many ceramic artists working in Ireland today producing both functional and sculptural ceramic work.

Bibliography

Archer, M. , Irish Pottery and Porcelain (1979)
Dunlevy, M. , Ceramics in Ireland (1988)
Francis, P. , Irish Delftware: An Illustrated History (2000)

Kim Mawhinney

CERAMICS

a durable material with a history spanning 10,500 years that is significant to the study of archaeology and history.

Ceramic figurines and pottery vessels in Anatolia and the Iranian Plateau date to 8500 b.c.e.. The archaeological, ethnographic, and historic evidence for ceramic production in the Middle East and North Africa is complex and has a voluminous literature. The earliest Islamic potters (Umayyad dynasty, 661–750 c.e.) inherited extant traditions: Blue- and green-glazed wares had been produced in Egypt since Roman times; the alkaline-glazed ceramics of Syria, Iraq, and Iran had been made since Achaemenid times (seventh to fourth centuries b.c.e.); and the Roman lead-glazed ceramic tradition had been continued by the Byzantines. Chinese influences (Tang stoneware, ninth to eleventh centuries; Song whitewares, twelfth to fourteenth centuries, and Ming blue- and whiteware, fifteenth to nineteenth centuries) were significant. The spread of Islam correlates with the distribution of hybrid production methods (molds, tin glazes, under-glazes, polychromy, and metallic pigments) and products (architectural tiles). Early Islamic wares included Umayyad (Mediterranean/Middle Eastern influence), Abbasid (Tang influence), Central Asian Samanid, Egyptian Fatimid, and Mesopotamian/Persian wares (twelfth to fifteenth centuries) from Rayy, Raqqah, and Kashan. Later Persian ceramics (fifteenth to nineteenth centuries) were made at Kubachi, Tabriz, and Kerman; Syrian artisans produced work at al-Fustat, Raqqa, and Damascus; Seljuk Turks fabricated wares at Iznik and Kütahya. Lusterware, Mina'i, Iznik, Gombroon, and Zillij are notable Islamic contributions to ceramic history.

The Museum of Islamic Ceramics in Cairo, the Ashmolean Museum in Oxford, and the Metropolitan Museum of Art in New York house specimens from different Islamic eras that span the region from Morocco in the west through Iran, Afghanistan, and Indonesia in the east. Although Iznik ceramics were prized by the Ottoman court into the early twentieth century, ceramic vessels and tiles produced from the earliest times to the present in Islamic lands, including Central Asia, are esteemed by museums, art historians, and collectors. With the availability of metal and plastic replacements, utilitarian production has diminished, but ceramic art and tile production remains strong.

Bibliography

Watson, Oliver. Ceramics from Islamic Lands. London: Thames and Hudson, 2003.

Whitehouse, David; Grube, Ernest J.; and Crowe, Yolande. "Ceramics: Islamic." In Encyclopedia Iranica. London; Boston: Routledge & Kegan Paul, 1995.

Elizabeth Thompson

Updated by Charles C. Kolb

ceramics Objects made of moistened clay that are shaped and then baked. Earthenware, terracotta, brick, tile, faience, majolica, stoneware, and porcelain are all ceramics. Ceramic ware is ornamented by clay inlays, relief modelling on the surface, or by incised, stamped, or impressed designs. A creamy mixture of clay and water (slip) can be used to coat the ware. After drying, ceramic ware is baked in a kiln until it has hardened. Glaze, a silicate preparation applied to the clay surface and fused to it during firing, is used to make the pottery non-porous and to give it a smooth, colourful, decorative surface. In ancient Egypt they developed a faïence with a glaze. Mesopotamia and Persia used large architectural tiles with colourful glazes. In the 6th and 5th centuries bc, the Greeks developed red, black, and white glazed pottery with figures and scenes, while the Romans used relief decoration. Persian, Syrian and Turkish pottery made further improvements. In Spain, lustreware – the first sophisticated ceramic of the modern era – was produced by 9th-century Moors. Italian majolica, Dutch delft, German Meissen, and English Wedgewood were further refinements. Chinese porcelain dates from the T'ang dynasty, and Chinese stoneware goes back to c.3000 bc.

ceramics , materials made of nonmetallic minerals that have been permanently hardened by firing at a high temperature, or objects made of such materials. Most ceramics resist heat and chemicals and are poor conductors of heat and electricity. Traditional ceramics are made of clay and other natural occurring materials, while modern high-tech ceramics use silicon carbide, alumina, and other specially purified or synthetic raw materials. Ceramic materials are used in all forms of pottery , from crude earthenware to the finest porcelain , and in industrial and engineering products. Ceramic products include cookware and dinnerware; art objects, such as figurines; building materials, such as brick ; abrasives , such as alumina , and specialized cutting tools; electrical equipment, such as insulators in spark plugs; refractories, such as firebrick and the heat shield on the space shuttle ; and artificial bones and medical devices. The oldest known fired ceramics date from the Paleolithic period some 27,000 years ago.

ce·ram·ic / səˈramik/ • adj. made of clay and hardened by heat: a ceramic bowl. ∎  of or relating to the manufacture of such articles. • n. (ceramics) pots and other articles made from clay hardened by heat. ∎  [usu. treated as sing.] the art of making such articles: sculpting, drawing, ceramics, and fiber art. ∎  (ceramic) the material from which such articles are made: tableware in ceramic. ∎  (ceramic) any nonmetallic solid that remains hard when heated. DERIVATIVES: ce·ram·i·cist / səˈraməsist/ n.

ceramic adj. XIX. — Gr. kermikós, f. kéramos potter's earth, pottery; see -IC.

CERAMICS

CERAMICS. SeeArt: Pottery and Ceramics .

ceramic •aerodynamic, balsamic, ceramic, cryptogamic, cycloramic, dynamic, hydrodynamic, Islamic, panoramic, psychodynamic, thermodynamic •Kalmyk, ophthalmic •chasmic, cytoplasmic, ectoplasmic, miasmic, orgasmic, phantasmic •karmic, psalmic •academic, alchemic, endemic, epidemic, pandemic, polemic, totemic •anaemic (US anemic), epistemic, systemic •bulimic, gimmick, metronymic, mimic, pantomimic, patronymic •filmic •eurhythmic, logarithmic, rhythmic •cataclysmic • seismic •agronomic, astronomic, atomic, comic, economic, ergonomic, gastronomic, metronomic, palindromic, physiognomic, subatomic, taxonomic, tragicomic •cosmic, macrocosmic, microcosmic •gnomic, monochromic, ohmic, photochromic •humic •hypodermic, taxidermic, thermic
